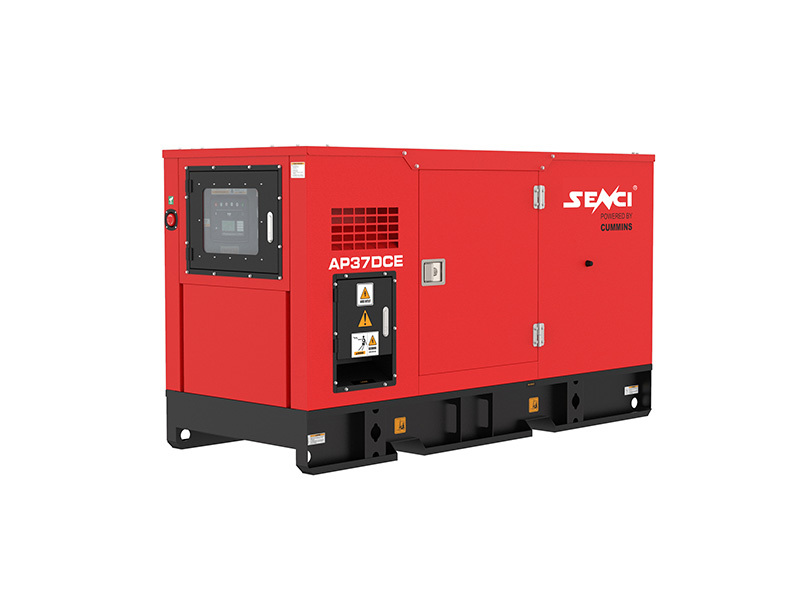

SC37DCE

The manufacturer of the global small generator set industry chain from components to terminal products has an annual output of 800,000 units of various types of generator sets and other terminal product.

Keywords:

Category:

Cummins

WhatsApp:

E-Mail：

Description

Generator specification	Model	SC37DCE
	Rated Power（kw/kva）	30/37.5
	Max Power（kw/kva）	33/41.3
	Rated Voltage（V）	400
	Max current output（A）	54
	Rated Frequency（Hz）	50
	Power Factor	0.8
	level of protection	IP33
	Generator Size： L×W×H（mm）	22009001250mm
	N.W.（kg）	1120
Engine parameters	Engine Brand	Cummins
	Engine model	4BT3.9-G2/EMS
	Rated Power/KW	36
	starting system	24V DC electrical start
	Combustion chamber system	direct injection
	number of cylinders	4
	Bore×Stroke	102×120 mm
	Displacement(L)	3.9
	Speed adjust way	electron speed regulator
	Oil capacity(L)	16.4L
	Air inlet way	Turbocharging
	Cooling way	Cool in water
	starting way	Electric start
Alternator specification	Brand	Stanford
	Model	S1L2-K1
	Rated Power(KW)	32
	Rated speed（ r/min）	1500
	insulation Class	Class H
	level of protection	IP23
	mode of connection	Three - phase four - wire, Y - type connection
	mode of adjust	AVR（automatic voltage regulator）
	Output Frequency	50Hz
	Output Factor	COSΦ=0.8（hysteresis）
	Frequency adjustment rate（%）	≤±0.5（steady state） +10～-7（instantaneous state）
	Voltage adjustment rate （%）	≤±0.5（steady state） +20～-15（instantaneous state）
	Voltage fluctuation rate（%）	≤±0.5
control system	Display format	DSE7320
	Monitoring content of diesel engine	Oil pressure, water temperature, engine speed, battery voltage, frequency
	integrated supervision	Voltage, current, three-phase detection
	protection function	Low oil pressure, overspeed, high water temperature, overcurrent and other anomalies

This series of generator sets is powered by H series, D series, E series, G series, and W series power station diesel engines produced by Shanghai Diesel Engine Co., Ltd., equipped with branded generators. The unit has the characteristics of high voltage regulation accuracy, good dynamic performance, small voltage waveform distortion, high efficiency, reliable operation, long service life, and good economic performance. The unit is equipped with a complete set of maintenance free battery starting system. Users only need to inject oil and coolant, connect the negative switch, and then start the unit to output electricity, greatly improving the convenience of use.
